Cosytoes Control Units

A timerstat is essential for the most efficient energy use as it controls when your heating will come on, go off and the temperature that you wish the floor to be.

Our manual on/off thermostat also controls the temperature of the floor. Each timerstat or thermostat comes with a floor probe that is installed in the adhesive layer, midway between 2 heating cables and comes with operating instructions.

Pricelist
Lifetime Guarantee
Where to Buy
Control Units
For Energy Efficiency and Maximum Warmth

A timerstat is essential for the most efficient energy use as it controls when your heating will come on, go off and the temperature that you wish the floor to be. Our manual on/off thermostat also controls the temperature of the floor. Each timerstat or thermostat comes with a floor probe that is installed midway between 2 heating cables and comes with operating instructions.

Our timerstats and thermostats are rated at 15, 16 and 20 amps. This means you can fit the following amount of matting or cable to each one:

  • Curve - up to 22m2
  • Mirage - up to 22m2
  • Wireless Timerstat - up to 22m2
  • Gloss Timerstat - up to 30m2
  • Manual Thermostat - up to 22m2

Mirage Timerstat

Efficient and easy to use technology within a unique, contemporary and classy reflective housing.

The ‘Mirage’ is a smart Timerstat that will maintain comfortable temperatures whilst minimising energy use.

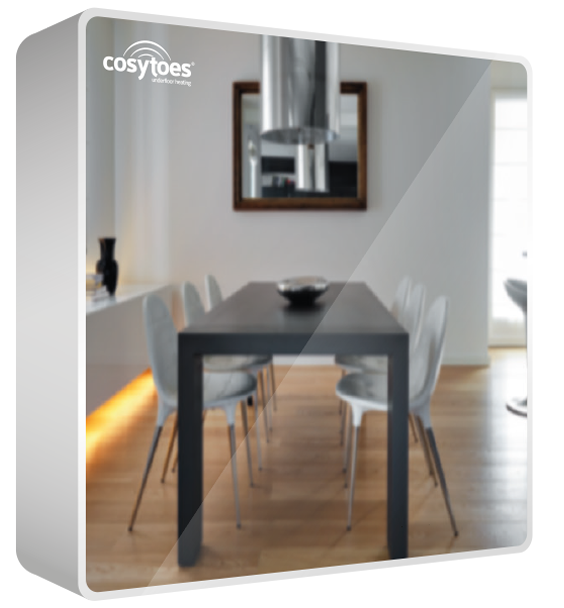

The ‘Mirage’ is available with either a black or white bezel surrounding it’s mirrored display (shown in standby mode left) so you have the option to choose the ‘Mirage’ Timerstat that best suits your decor.

Main Features:

  • Time Display
  • Holiday Function
  • Key-lock
  • Hold Function
  • Internal and Floor Sensor Selection
  • Floor High Temperature Protection
  • Off Time Frost Protection

Technical Features:

  • Supply voltage: 85-265V 50/60Hz
  • Maximum switching current: 15A
  • Standby power: < 1W
  • IP rating: IP21
  • Wire diameter ≤2.5mm
  • Suitable for up to 22sqm of heating mat

How to program your Mirage:

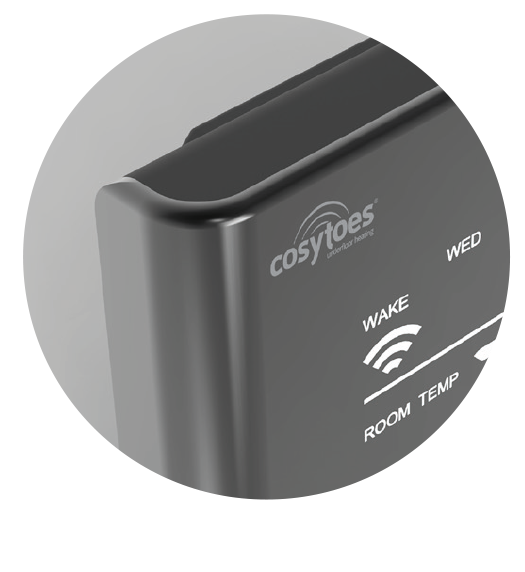

Curve Timerstat

The ‘Curve’ connects to your home WiFi router and can be accessed anywhere using the Android or iOS app.

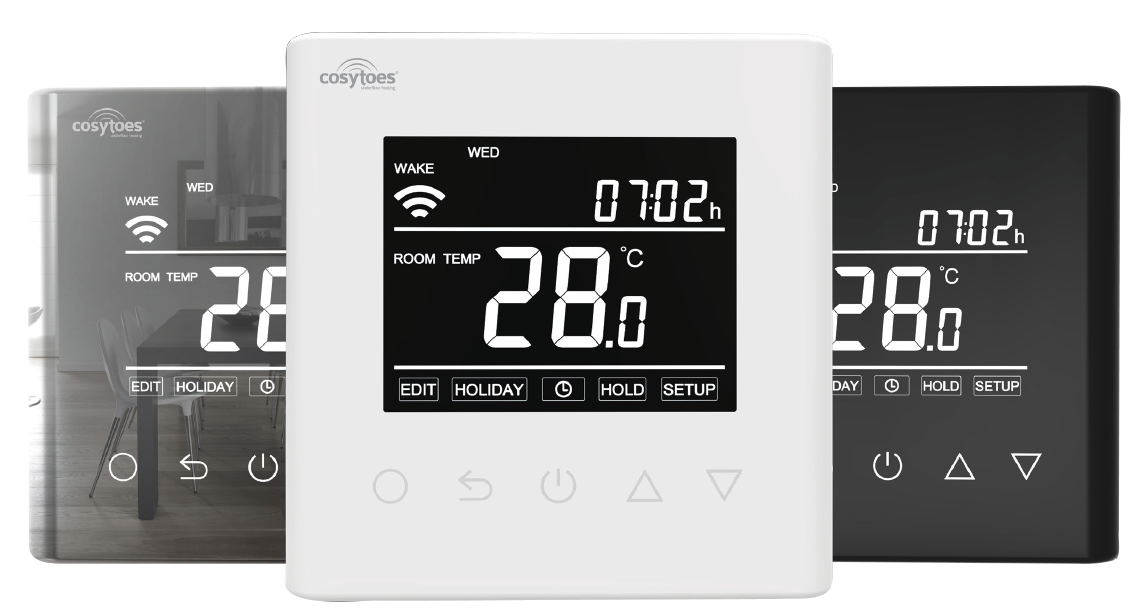

The ‘Curve’ can also be controlled via the unit itself, but you will always have the added flexibility of using the app to override settings, switching the heating on or off as required. WiFi and Standard (non-WiFi) versions available in White, Black and Reflection housing,

Main Features:

  • WiFi control
  • Time Display
  • Holiday Function
  • Key-lock
  • Hold Function
  • Internal and Floor Sensor Selection
  • Floor High Temperature Protection
  • Off Time Frost Protection

Technical Features:

  • 7 Day Programmable
  • Supply voltage: 85-265V 50/60Hz
  • Maximum switching current: 15A
  • Standby power: < 1W
  • IP rating: IP21
  • Wire diameter 2.5mm
  • Suitable for up to 22sqm of heating mat

How to program your Curve WiFi:

How to program your Curve Standard:

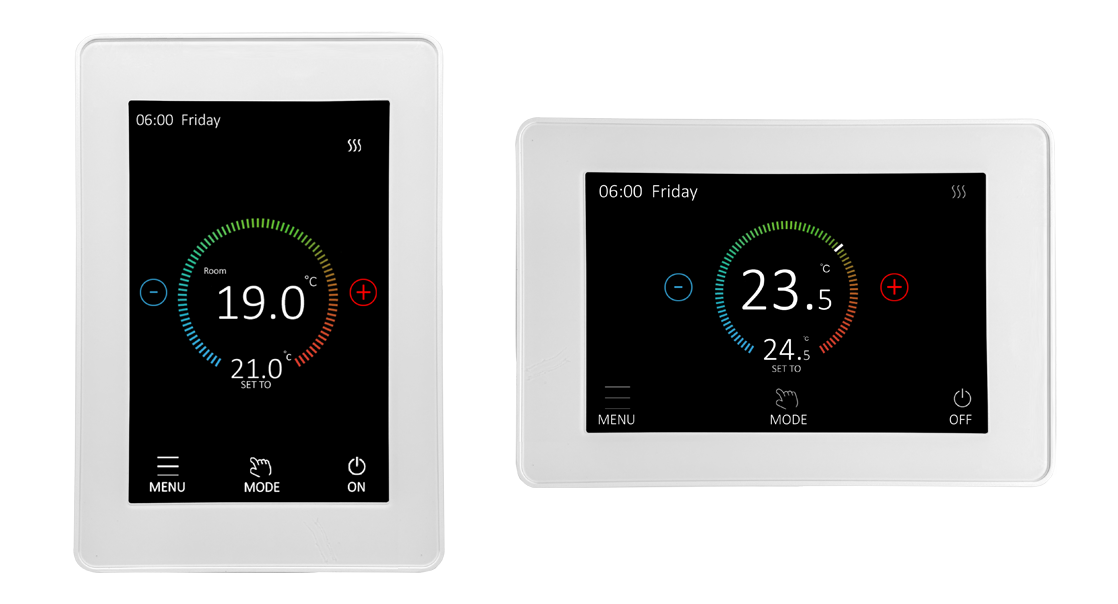

Vista Dual Timerstat

The ‘Vista Dual’ is our latest timerstat, featuring a colour widescreen display that connects to your Wi-Fi router and can be accessed anywhere using the Android or iOS app — the perfect control unit for a stylish and contemporary setting.

The ‘Vista Dual’ can be controlled directly via the unit itself, while also giving you the added flexibility of using the app to override settings and switch the heating on or off as required. You can also control your heated towel rail via the thermostat and app, providing complete convenience and control.

The ‘Vista Dual’ can also switch between Horizontal and Vertical display.

Available in White and Black.

Main Features:

  • Colour Screen
  • WIFI Control
  • Time Display
  • Hold Function
  • Key-Lock
  • Internal and Floor Sensor Selection
  • Floor High Temperature Protection
  • Off Time Frost Protection
  • Underfloor Heating and Towel Rail Control
  • Horizontal and Vertical Display

Technical Features:

  • 7 Day Programmable
  • Supply Voltage: 85-265V 50/60Hz
  • Maximum Switching Current: 15A
  • Standby Power: up to 1W
  • IP Rating: IP21
  • Wire Diameter: 2.5mm
  • Suitable For Up To 22sqm/3.3KW of Heating Mat/Loose Cable

MT4 Manual Thermostat

A good looking Thermostat that is very simple to operate!

Main Features:

  • ON/OFF: Press the ‘M’ button for 3 seconds to turn the thermostat on/off. (On screen lit/off blank screen)
  • Temperature Control: Press the + or - buttons to raise or lower the temperature.
  • Key Lock: Press the ‘M’ button and the - button together for 3 seconds to lock/unlock the thermostat. (Stops little hands from changing things)
  • Mode Selection: Press the ‘M’ button to switch between home mode and away mode. Home mode is defaulted to 22°C, and away mode is defaulted to 15°C which will turn off the underfloor heating as and when you wish to be away (these default temperatures can be changed in the advanced settings).

Technical Features:

  • Supply Voltage: 220V-240V 50/60Hz
  • Maximum Switching Current: 16A
  • Standby Power: Up to 1W
  • IP Rating: IP30
  • Colour: White
  • Sensor: NTC 10K B 25/50:3950K
  • Size: 86x86x11mm
  • Accuracy: ±1°C
  • Temp Range: 5~35°C
