Underfloor heating is now an essential lifestyle choice for any professionally designed room. For your project you will want to purchase the highest quality products, with a lifetime guarantee at a fair price.

Cosytoes® are a well established British company that has been involved in the manufacture and sales of electric underfloor heating in the UK and Europe for nearly two decades. We pride ourselves on our depth of knowledge and excellent customer service.

Pricelist
Lifetime Guarantee
Where to Buy

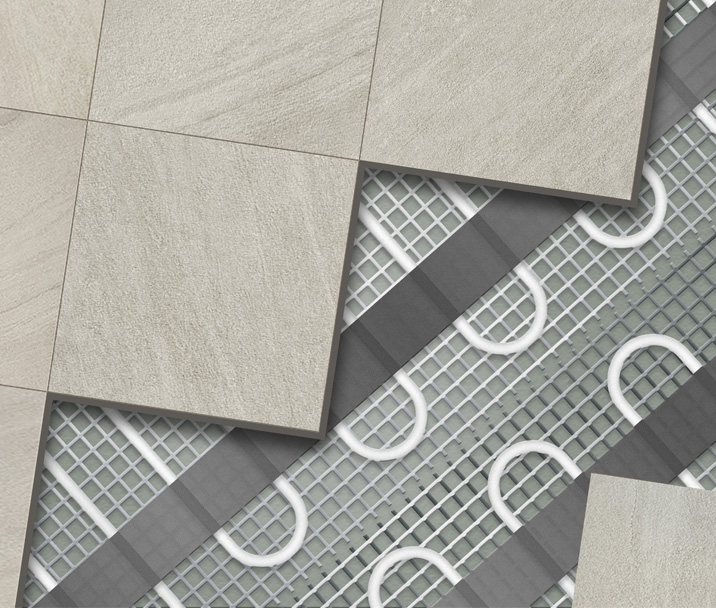

Choose TradeMat Plus
For Larger Areas such as Kitchens, Dining Rooms and Conservatories

Mats are faster to install and have a fixed cable space that gives a pleasant even spread of heat over the floor surface. TradeMat Plus is powerful at 150w per square metre and is designed for general floor warming.

Key Benefits:

  • Easy to install ‘Tack n Stick’ technology
  • Ideal for larger areas
  • 14 popular sizes (1 to 10sqm) (Use multiple mats for larger areas)

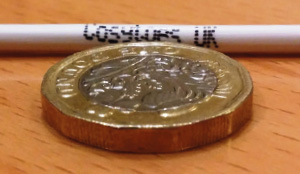

  • Only 3mm thick
  • Tough outer insulation helps to withstand accidental damage
  • Very safe - aluminium earth wrap protection
  • Suitable for wet rooms - IPX7 rated
  • Lifetime Guarantee

Image courtesy of Charlotte Edwards - info@charlotte-edwards.co.uk

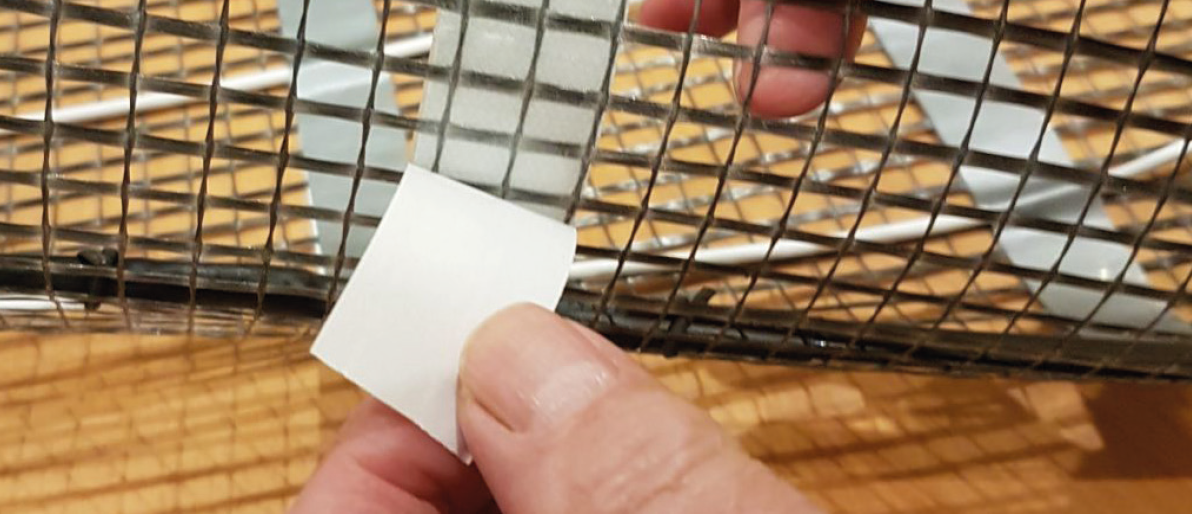

Our new TradeMat Plus is incredibly well made and boasts a unique installation advantage; ‘Tack n Stick’ adhesive backing. The complete underside of the mat has a tacky adhesive. This enables you to accurately position (and re-position) the mat before cutting, without the risk of movement.

The underside also incorporates tape strips, which, when removed, expose three strips of adhesive tape. This powerful adhesive then holds the mat in the final installed position ready for tiling. You will have no ends sticking up with this mat!

Mats are 500mm wide and when the mesh is cut, it can be turned 90 or 180 degrees to fit your floor area.

Technical Specification:

  • Cable Output: 11.5w/m
  • Voltage: 230V
  • Outer Insulation: Tough PVC
  • Inner Insulation: High-Performance Teflon
  • Wire Thickness: 3mm
  • Protection Class: IPX7. Suitable for wet rooms
  • Connections: One connection 4m long
  • Cable: Twin Element/White

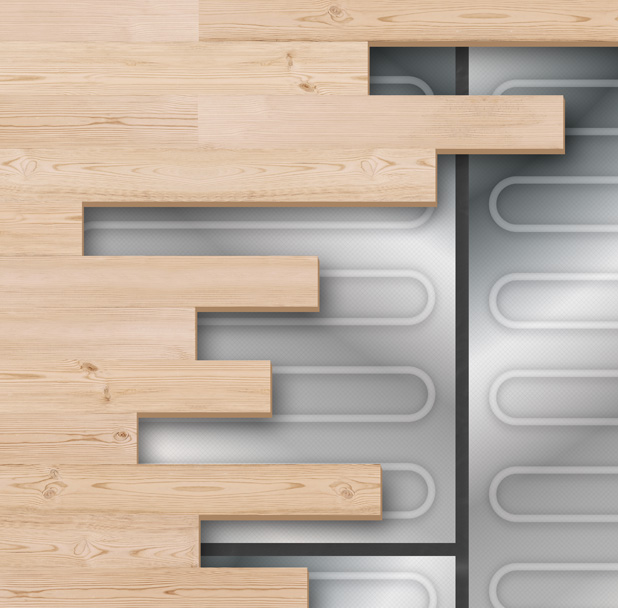

Choose Softmat
For Manufactured Wood and Laminate Flooring

Softmat has been designed for use under laminate and manufactured hardwood flooring. This system has a foil heat exchanger for even distribution of heat through the floor surface.

Key Benefits:

  • Best system for use under wooden floors on the market
  • Easy to install
  • Use a timerstat for efficient heating control
  • Surpasses international safety standards
  • Tough rugged construction
  • Heating cables only 1.5mm thick
  • Overall depth of system 6mm including 5mm Depron Board

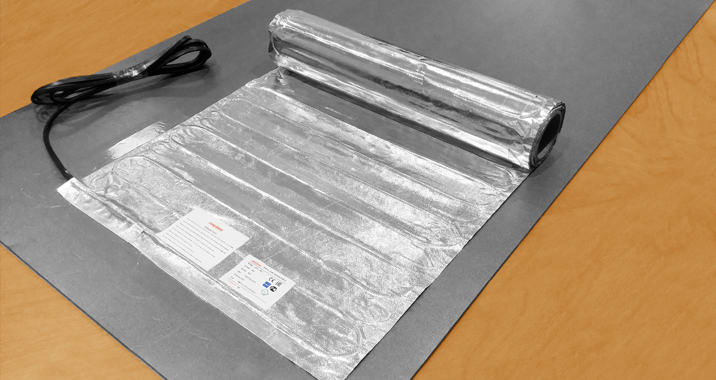

The thin heating cables are laminated to the underside of a foil heat-exchanger and bed into the 5mm Depron Foam Softmat Underlay. The flooring is laid directly over the Softmat and the foil heat-exchanger distributes the 140w/sqm heat evenly over the floor area.

Softmat Underlay

When using Cosytoes® Softmat it is important to also install Softmat Underlay onto the floor prior to laying Softmat. Softmat Underlay is a 5mm thick Depron Foam board that is laid out and closely fitted over the entire floor area. The thin heating cables bed into the underlay with the foil heat exchanger uppermost. The flooring is then installed.

Technical Specification:

  • Cable Output: 6.25w/m
  • Voltage: 230V
  • Outer Insulation: Teflon
  • Inner Insulation: Teflon
  • Wire Thickness: 1.5mm
  • Protection Class: IPX7
  • Connections: One connection 4m long
  • Cable: 2x Single Element

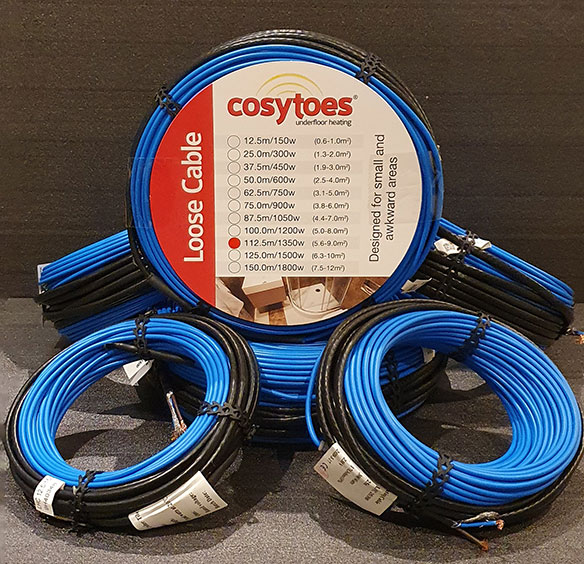

Choose Loose Cable
For Awkward Areas

Cosytoes® Loose Cable is ideal for irregular shaped floor areas, such as a small bathroom.


Key Benefits:

  • Ideal for irregular areas
  • Six popular sizes
  • Only 3mm thick
  • Also suitable for carrier de-coupling mats
  • Tough outer insulation helps withstand accidental damage
  • Very safe aluminium earth wrap protection
  • Suitable for wet rooms - IPX7 rated
  • One 4m long connection cable
  • Lifetime Guarantee


The loose cable is only 3mm thick and is simply adhered to the floor using fixing tape following the spacings given in the installation guide and then you can tile the floor.

Technical Specification:

  • Cable Output: 11.5w/m
  • Voltage: 230V
  • Outer Insulation: Tough PVC
  • Inner Insulation: High-Performance Teflon
  • Wire Thickness: 3mm
  • Protection Class: IPX7. Suitable for wet rooms
  • Connections: One connection 4m long
  • Cable: Twin Element/White

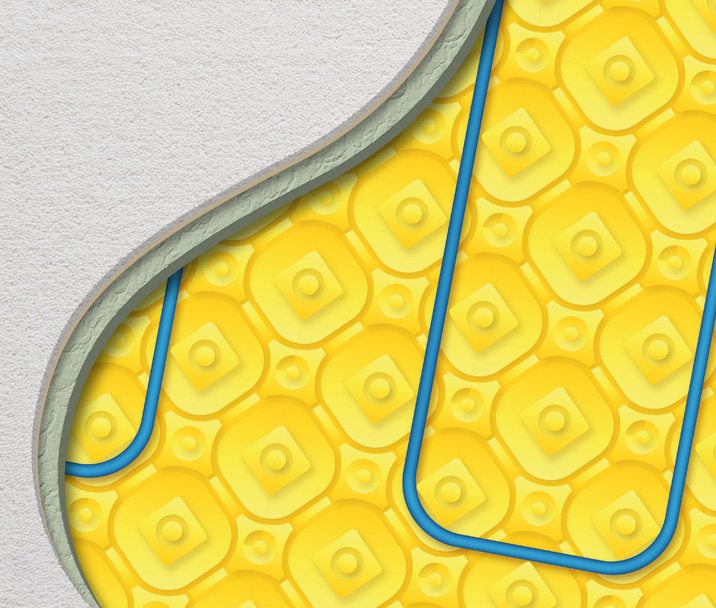

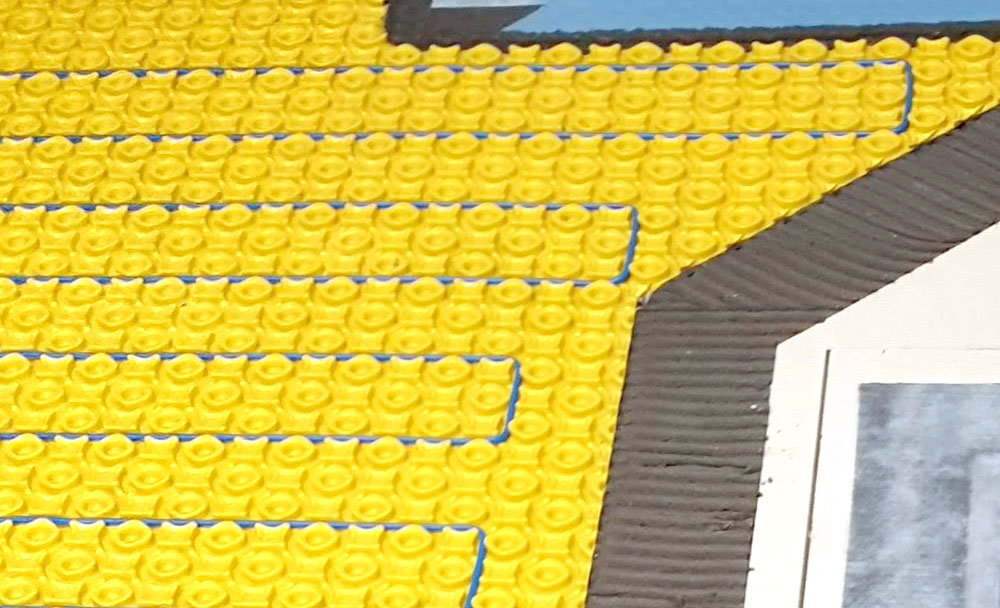

Choose Decoupling Mat Cable
For Small to Large Areas

A new range of heating cable specially designed to fit cable carrier decoupling mat for installation in small to large areas including conservatories.

Key Benefits:

  • Eleven popular sizes (0.6sq/m – 12sq/m)
  • Only 3mm thick
  • Very safe aluminium earth wrap protection
  • Suitable for wet rooms - IPX7 rated
  • One 4m long connection cable
  • Tough outer insulation helps withstand accidental damage
  • Lifetime Guarantee


Designed to fit cable carrier decoupling mats.

Technical Specification:

  • Cable Output: 11.5w/m
  • Voltage: 230V
  • Outer Insulation: Tough PVC
  • Inner Insulation: High-Performance Teflon
  • Wire Thickness: 3mm
  • Protection Class: IPX7. Suitable for wet rooms
  • Connections: One connection 4m long
  • Cable: Twin Element/White

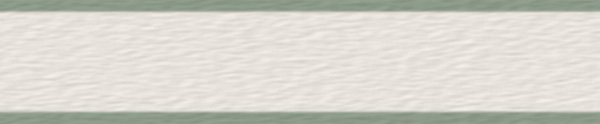

Cosyboard
Create the perfect base for your underfloor heating system

Insulating Tile Backer Boards provide a perfect subfloor for tiling and we highly recommended them for underfloor heating, essential if you are installing on an old concrete subfloor.

Cosyboard is available in 1200mm x 600mm with a 6mm thickness.

The board has an insulating polystyrene core, which is protected by a strong outer cement type coating.

In tests with our under floor heating products, the floor warming time on an uninsulated floor was cut from over one hour to less than 30 minutes. Simply fix the boards to a concrete or timber floor with tile adhesive.

Please note that we do not sell cheaper foam boards, i.e. without the harder outer shell, as from our experience we feel they are not fit for purpose.

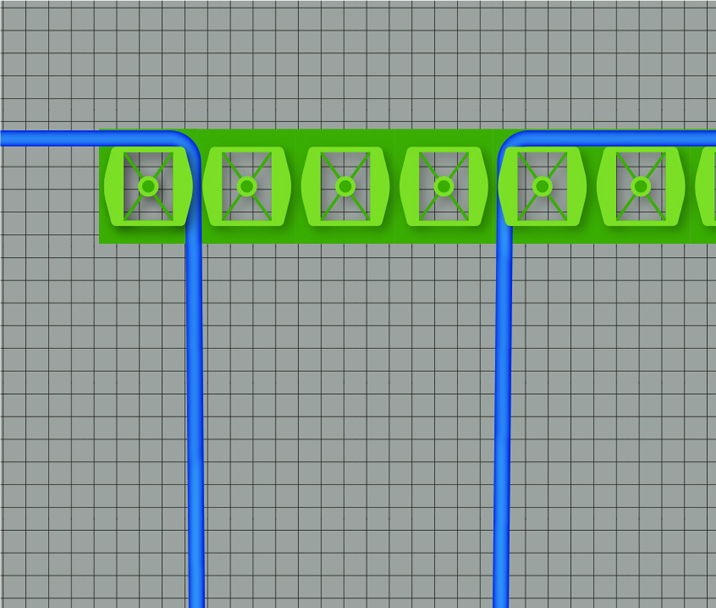

Cable Spacers
A versatile choice for loose cable installations

Cosytoes Underfloor Heating Cable Spacers are durable and easy-to-use which ensures perfect cable spacing and even heat distribution across your floor. Its flexible, cut-to-fit design adapts to any room layout, providing a clean and secure installation every time. Each cable spacer is 30.6cm in length x 3.5cm in width and a depth of 0.6cm.

Key Features:

  • Accurate cable spacing for consistent, energy-efficient heat output
  • Flexible and easy to trim for custom layouts and tricky areas.
  • Fast, hassle-free installation.
  • Recommended spacings of 75mm.

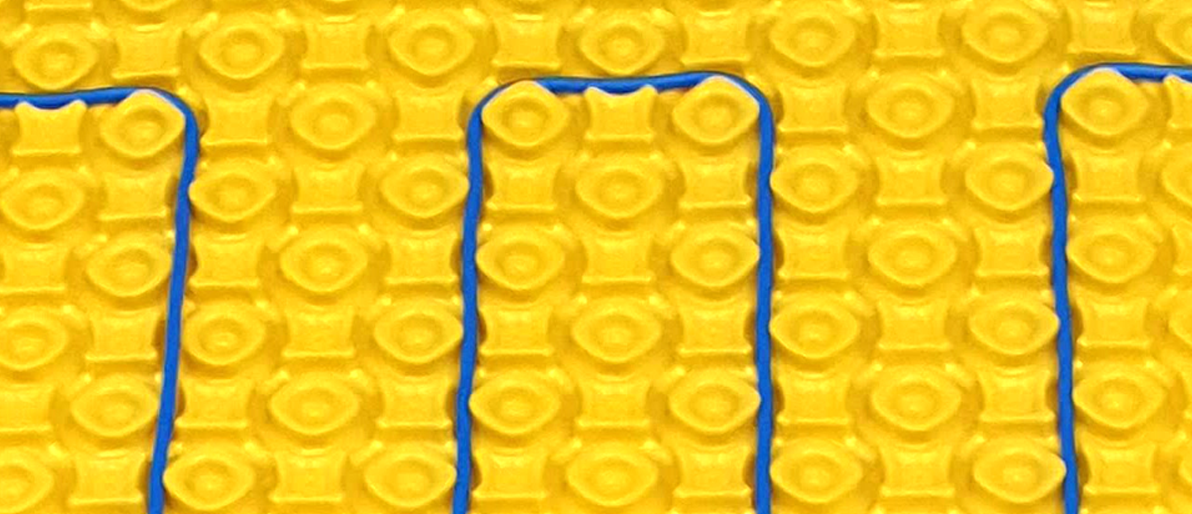

Loose Cable Carrier Mat
The professionals choice for loose cable installations

Cosytoes Underfloor Heating Carrier Mat is designed for ease of installing our loose cable system. The revolutionary system acts as two products in one. Firstly, the mat is a decoupling membrane which guards against sub floor movement and stress cracking tiles in the future. Secondly it acts as a cable carrier which ensures even wire and heat distribution, as well as reduced installation time. (Use above Cosyboard on concrete floors for correct performance). Available in 5sqm Rolls.
